wHAT it is LIKE TO own A dc MACHINE?

WET OR DRY?

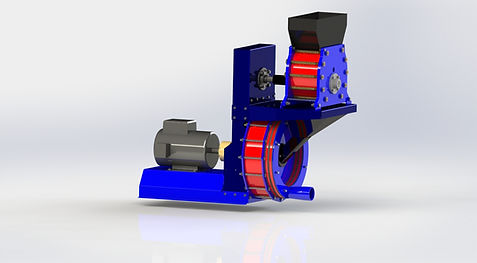

DC24 Impact Crusher

$5,800.00Regular Price$4,640.00Sale Price

DC36 Impact Crusher

$14,600.00Price

Ultimate Size Control

The DC24 is the only impact crusher on the market that can deliver perfect size control. Internal screens are installed at any desired mesh between 10 and 100. True screening ensures no oversize particles will pass, drastically improving the performance of nearly any concentration method. You won't believe how well your shaker table runs when you run uniform material across the deck.

Screen Change

Smart Wear Construction

Most crushing equipment is constructed of a welded exoskeleton framework that relies on bolt in liners to protect the machine. Over time, the framework begins to loose shape from metal fatigue and overrun liners. Soon, you spend more time welding and patching your machine than you do crushing rock.

The DC Line of crushers incorporates the wear components into the body of the machine to form the structure. All components are bolt on and nearly weld free. This means every time you order a new set of liners, your machine is returned to factory specification.  For those in remote areas this machine can be completely rebuilt with a set of wrenches.

Hammer Change

For those getting started, the DC crusher is truly an 'all in one machine' capable of crushing, grinding and classifying. The only machine that can accept relatively large rocks, up to 4" and produce a product ready for concentration equipment in a single pass. And do it all day long!

stand alone operation

Room to grow

When you are ready to expand, add the OLESI Orbital Jaw Crusher attachment and boost your throughput while increasing feed max size to 8". Your DC24 comes with enough extra power to drive the OLESI, you only need the crushing head and mount.

‚Äč

Further increase production with the addition of GBG ball mill and now you're hitting 250 mesh for ultra fine grinding.

Parts in stock and on time

At GBG we manufacture and stock parts so you can purchase online. With each order you receive a membership to the subscriber side of the site where you can view drawings to ensure you receive the correct part.

Specifications

Model.....................DC24

HP...........................7.5 to 10

Voltage...................208/240 1PH/3PH

Max Feed...............3"

Discharge...............15 mesh - 100 mesh"Adj

Weight....................585 Lbs

Size........................L51 X W24 X 24H

Shipping................L48 x W30 x H30

Specifications

Model.....................DC36

HP...........................30

Voltage...................480 3PH

Max Feed...............4"

Discharge...............15 mesh - 100 mesh"Adj

Weight....................1382 Lbs

Size........................L64 X W36 X 36H

Shipping................L60 x W40 x H40
